Beijing Xiaotunpai Technology Co., Ltd. is a high-tech enterprise engaged in the R&D and production of infrared thermal imaging equipment and systems, and providing overall solutions. Based on infrared thermal imaging technology and image processing as its core technology, the company has formed a complete optical, mechanical and electrical integration system, machine vision and intelligent control system. Products are mainly used in major national missions and high-end equipment such as aerospace, military, border and coastal defense, emergency rescue, and intelligent prevention and control. The core team has rich experience in optoelectronic equipment R&D design and engineering product development.
Product Model：SS-280-KZ Product Name：Servo Controller Control Precision：0.1° Usage Scenario：Drone
Product Name：03# Integrated Servo Performance Parameters: Rated Voltage: DC7.4V Power Supply Requirement: DC6V~7.4V Rated Torque: 0.5Nm Maximum Torque: 1.5Nm (3 times rated) Angle Range: ±50° (Standard, maximum ±120°) ±30° (High-precision) No-load Speed: 520°/s Dynamic Characteristics (-3dB, -90° Phase Shift): Amplitude 1°: Bandwidth >12Hz Amplitude 2°: Bandwidth >12Hz Overshoot: Within 5% Command Signal: CAN bus Operating Temperature: -40℃~+65℃ Bus: RS422/CAN Control Precision：0.1° Usage Scenario：Drone

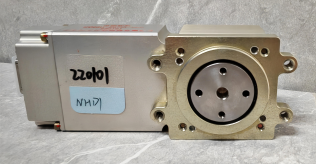

Product Model: XH/NHD1 Product Name: Electric Servo 30Nm Product Dimensions: 135 x 50 x 35mm Performance Parameters: Control/Power Supply: 28V/28V Bus: RS422/CAN Rated Torque: 20Nm Maximum Torque: 30Nm Bandwidth: ≥15Hz Rated Speed: 120°/s Swing Angle: ±30° Control Precision: 0.1° Application Scenario: Drone

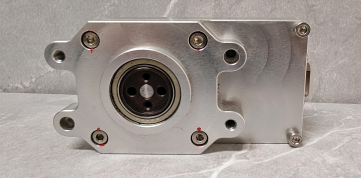

Product Model: 0042001004 Product Name: Electric Servo 5Nm Product Dimensions: 97 x 49 x 38mm Performance Parameters: Control/Power Supply: 28V/28V Bus: RS422/CAN Rated Torque: 5Nm Maximum Torque: 10Nm Bandwidth: ≥10Hz Rated Speed: 150°/s Swing Angle: ±30° Control Precision: 0.1° Application Scenario: Drone

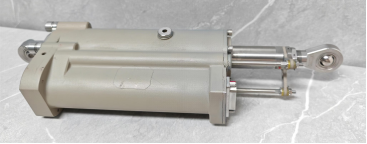

Product Model: XFD1-FXZD Product Name: Rudder Actuator Product Dimensions: 305 x 90 x 65mm Performance Parameters: Control/Power Supply: 28V/28V Bus: RS422/CAN Rated Torque: 1200N Maximum Torque: 2500N Bandwidth: ≥4Hz Rated Speed: 30mm/s Swing Angle: ±28mm Control Precision: 0.3mm Application Scenario: Drone

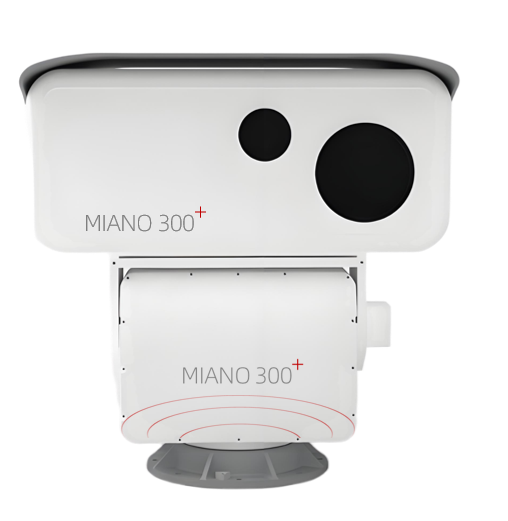

The intelligent integrated electro-optical system, based on photoelectric detection imaging technology and combined with various advanced technologies such as Geographic Information Systems (GIS), information management technology, artificial intelligence (AI), Internet of Things (IoT), and big data, has an operationalrange of over 25 km. Main Applications: Marine Coastal Areas: Used for monitoring and security control in coastal regions, such as maritime patrols and coastal safety. Ports and Docks: Enhances security at ports and docks by monitoring the safety of incoming and outgoing vessels and surrounding areas. Border Outposts: Strengthens monitoring capabilities at border outposts, ensuring border security and emergency response.
The Hyperspectral Infrared Gas Detection System utilizes Fourier-transform infrared (FTIR) spectroscopy technology to remotely detect gas-specific infrared absorption fingerprint characteristics, enabling simultaneous identification of multiple gas components with long-distance detection capabilities and high sensitivity. It is primarily designed for monitoring hazardous gas leaks and emissions, offering non-contact, long-range rapid detection of dangerous gases and triggering timely alarms to ensure production safety and personnel protection.

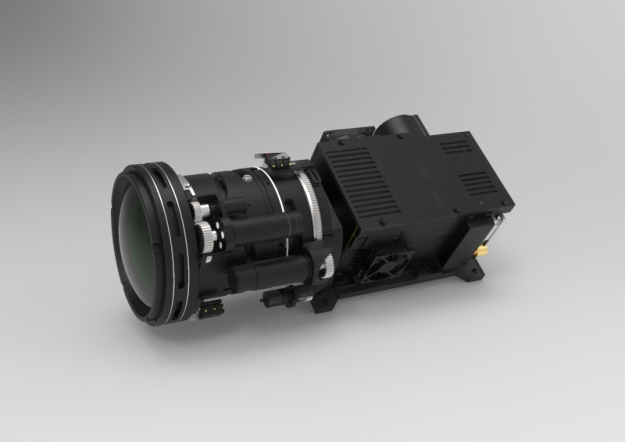

Detector Material: HgCdTe (Mercury Cadmium Telluride) Operating Wavelength: 3.7μm to 4.8μm Relative Aperture: f/4 Pixel Size: 15μm × 15μm Resolution: 640 (H) × 512 (V) Frame Rate: 25Hz/50Hz NETD (Noise Equivalent Temperature Difference): ≤30mK MRTD (Minimum Resolvable Temperature Difference): ≤250mK Focal Length: 15mm to 300mm continuous zoom Focal Length Accuracy: Short focal length: ±3%; Long focal length: ±1% Optical Axis Consistency: 2 pixels Continuous Zoom Time: ≤5 seconds (full range zoom) Auto Focus Time: ≤2.5 seconds Cooling Time: Normal temperature: ≤7 minutes ｜High temperature: ≤10 minutes Power Consumption: ≤30W Operating Temperature: -45°C to +65°C Power Supply: DC24V ±4V
Dedektör Malzemesi: HgCdTe (Cıva Kadmiyum Tellür) Çalışma dalga boyu: 3.7μm ila 4.8μm Bağıl Diyafram Açıklığı: f / 4 Piksel Boyutu: 15μm × 15μm Çözünürlük: 640 (H) × 512 (V) Kare Hızı: 25Hz / 50Hz NETD (Gürültü Eşdeğer Sıcaklık Farkı): ≤30mK MRTD (Minimum Çözülebilir Sıcaklık Farkı): ≤250mK Odak Uzaklığı: 15 mm - 300 mm sürekli yakınlaştırma Odak Uzaklığı Doğruluğu: Kısa odak uzaklığı: %±3; Uzun odak uzaklığı: %±1 Optik Eksen Tutarlılığı: 2 piksel Sürekli Yakınlaştırma Süresi: ≤5 saniye (tam aralıklı yakınlaştırma) Otomatik Odaklama Süresi: ≤2,5 saniye Soğutma Süresi: Normal sıcaklık: ≤7 dakika | Yüksek sıcaklık: ≤10 dakika Güç Tüketimi: ≤30W Çalışma Sıcaklığı: -45°C ila +65°C Güç kaynağı: DC24V ±4V
Detector Material: HgCdTe (Mercury Cadmium Telluride) Operating Wavelength: 3.7μm to 4.8μm Relative Aperture: f/4 Pixel Size: 15μm × 15μm Resolution: 640 (H) × 512 (V) Frame Rate: 25Hz/50Hz NETD (Noise Equivalent Temperature Difference): ≤30mK MRTD (Minimum Resolvable Temperature Difference): ≤250mK Focal Length: 22.5mm-687mm-900mm continuous zoom Focal Length Accuracy: Short focal length: ±3%; Long focal length: ±1% Optical Axis Consistency: 2 pixels Continuous Zoom Time: ≤7 seconds (full range zoom) Auto Focus Time: ≤2.5 seconds Cooling Time: - Normal temperature: ≤7 minutes - High temperature: ≤10 minutes Power Consumption: ≤40W Operating Temperature: -45°C to +70°C Power Supply: DC24V ±4V
Detector Material: HgCdTe (Mercury Cadmium Telluride) Operating Wavelength: 3.7μm to 4.8μm Relative Aperture: f/4 Pixel Size: 15μm × 15μm Resolution: 640 (H) × 512 (V) Frame Rate: 25Hz/50Hz NETD (Noise Equivalent Temperature Difference): ≤30mK MRTD (Minimum Resolvable Temperature Difference): ≤250mK Focal Length: 22.5mm-800mm-950mm continuous zoom Focal Length Accuracy: Short focal length: ±2%; Long focal length: ±1% Optical Axis Consistency: 2 pixels Continuous Zoom Time: ≤7 seconds (Full-range Zoom) Auto Focus Time: ≤2.5 seconds Cooling Time:Normal temperature: ≤7 minutes | High temperature: ≤10 minutes Power Consumption: ≤40W Operating Temperature: -45°C to +70°C Power Supply: DC24V ±4V
Detector Material: HgCdTe (Mercury Cadmium Telluride) Operating Wavelength: 3.7μm to 4.8μm Relative Aperture: f/4 Pixel Size: 15μm × 15μm Resolution: 1280 (H) × 1024 (V) Frame Rate: 100Hz, 50Hz, 25Hz NETD (Noise Equivalent Temperature Difference): ≤35mK MRTD (Minimum Resolvable Temperature Difference): ≤350mK Focal Length: 45mm-900mm-1100mm continuous zoom with accuracy ±3% Optical Axis Consistency: 2 pixels Continuous Zoom Time: ≤8 seconds (full range zoom) Auto Focus Time: ≤2.5 seconds Cooling Time:Normal temperature: ≤7 minutes；High temperature: ≤10 minutes Power Consumption: ≤50W Operating Temperature: -45°C to +70°C Power Supply: Communication and External Sync DC24V ±4V
Developed for unmanned aerial vehicles, the Lightweight Miniature Photonic Pods is designed to meet the mounting requirements of UAVs with light payload capacity. Key Features: User-friendly operation, small form factor, and flexible payload configuration. Can be mounted on various platforms such as fixed-wing drones and unmanned helicopters, with autonomous stabilization capabilities. Equipped with reconnaissance, surveillance, search, and target tracking capabilities.Suitable for applications including environmental monitoring, flood control and disaster relief, power line inspection, forest patrolling, maritime rescue, and more.
Designed for manned aircraft such as fixed-wing planes and helicopters, this multi-payload electro-optical reconnaissance pod integrates advanced capabilities. Key Features: •Utilizes high-definition visible light camera; cooled infrared thermal imager significantly enhances monitoring range in all environments. •Servo stabilization control ensures stable imaging output even at long focal lengths; tracking function facilitates real-time and accurate target tracking and positioning. •Equipped with a high-precision IMU •Primarily used in military reconnaissance, counter-terrorism drills, security surveillance, customs anti-smuggling, and other applications.
Detector Material: HgCdTe Operating Wavelength: 3.7μm to 4.8μm Relative Aperture: f/2 Pixel Size: 15μm × 15μm Resolution: 640 (H) × 512(V) Frame Rate: 100Hz, 50Hz, 25Hz NETD (Noise Equivalent Temperature Difference): ≤25mK Cooling Time:Normal temperature: ≤7 minutes；High temperature: ≤10 minutes Power Consumption: ≤40W Operating Temperature: -45°C to +70°C Power Supply: Communication and External Sync DC24V ±4V Interface: RS422 Video Interface: CAMRALINK、AV(PAL)

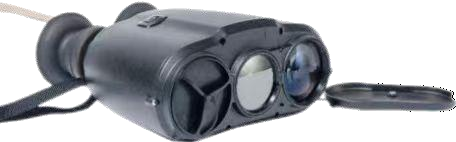

The Fusion Telescope is a handheld binocular viewer featuring modes such as Infrared, Low-Light, and Fusion (Black/White, Jungle, Urban, Marine, Desert, Snow, Color). It enables day and night observation in all modes, and is equipped with functions like photography, video recording, and playback. Additionally, it has a certain capability for camouflage recognition. It is suitable for day and night observation in typical scenarios such as jungles, snowfields, marine environments, urban areas, and deserts.

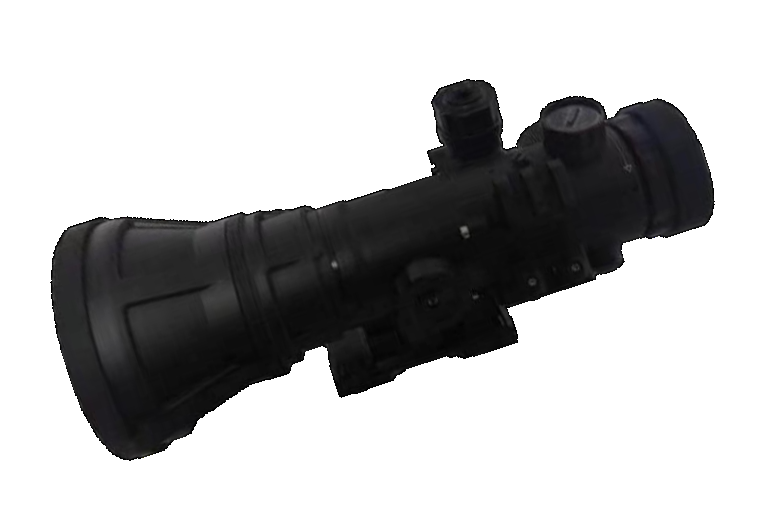

The 6x low-light scope is designed for identifying and observing targets by means of faint starlight or moonlight under natural conditions at night without any artificial illumination. The product is primarily used for medium-to-long-distance nighttime observation. It enables searching for and aiming at targets by utilizing faint starlight or moonlight under conditions of no artificial illumination at night.

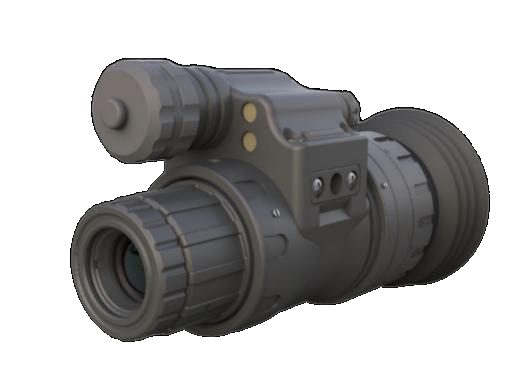

The multi-functional monocular low-light night vision system features a compact structure, using Chinese-made Super Generation II low-light image intensifiers for high-definition imaging, reliable and superior performance, small size, and light weight. It utilizes faint visible light and near-infrared light at night for imaging, providing directly viewable night vision images that effectively enhance situational awareness. Main Functions: Infrared auxiliary illumination, strong light protection, and battery reverse connection protection. The product can be used in a head-mounted configuration or detached from the head for handheld observation, suitable for nighttime observation and target detection.
The handheld night vision evidence instrument integrates laser lighting (no red light) patented technology, ultra-high-definition imaging technology, Intelligent license plate recognition technology, long-distance transmission technology and other technologies are suitable for target search and target feature observation and recording in the day and night, especially in the black night environment. The night vision device has the characteristics of portability, intelligent operation, long working distance and high practicality.

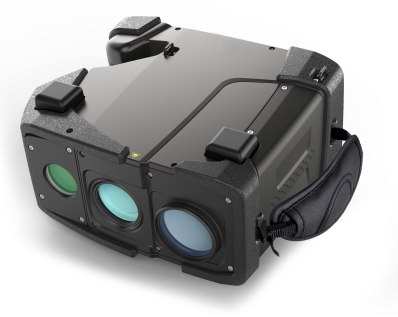

Handheld multi-spectral night vision, set high-definition visible lens, thermal imaging, laser light (invisible to the naked eye), Beidou / GPS module, electronic compass is equal to one. It is suitable for outdoor mobile surveillance, covert surveillance, recording evidence, and other occasions. It can carry out day and night detection, feature identification, hot spot tracking and local camera recording of distant objects; The product has the characteristics of rapid deployment, long operating distance, zero-light imaging, clear imaging, and a variety of transmission modes.

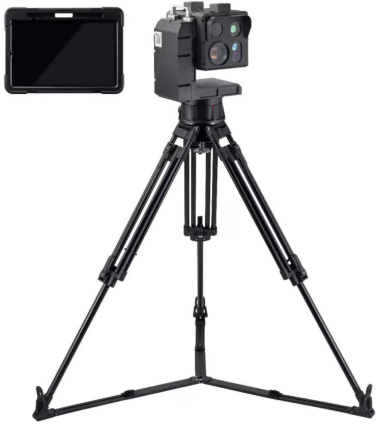

The portable mobile video surveillance system is specially designed for long-distance day and night surveillance and evidence collection in the field, and is suitable for scenarios such as temporary deployment in the field, covert surveillance, mobile surveillance, and day and night evidence collection. The product integrates photoelectric turntable, infrared thermal imaging, visible light camera, telephoto lens, laser ranging, electronic compass, and Beidou positioning.
